BTO 30 Type Concertina Razor Wire With 0.5mm Thickness 450mm Coil Diameter For Prison

  • 1
  • 2

Brand Name : X MESH

Model Number : X MESH-Concertina Wire-003

Certification : ISO9001:2015

Place of Origin : Hebei P.R. China.

MOQ : 500Coil

Price : USD20.50-USD35.5/Coil

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 500tons/month

Delivery Time : 5-7days

Packaging Details : Wrapped with carton and pallet packing

Product Name : Concertina Razor Wire

Material : Hot Galvanized Steel

Blade Thickness : 0.5mm

Wire Dia. : 2.5mm

Blade Length : 30mm

Blade Width : 21mm

Blade Spacing : 54mm

Tensile Strength : 850MPa

Application : For Prisons Protection

Packing : Weave bags Packing or Pallet Packing

Contact Now

BTO 30 Type Concertina Razor Wire with 0.5mm Thickness 450mm Coil Diameter for Prison

Concertina Razor Wire Introduction:

Razor barbed wire is a kind of modern security fencing materials fabricated with razor-sharp steel blade and high-tensile wire.
It can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders,
with piecing and cutting razor blades mounted at the top of the wall, also the special designs making climbing and touching extremely difficult.
The wire and strip are galvanized or PVC coated to prevent corrosion.

Material:
Galvanized wire and plate
Heavy Zinc coated wire and plate
Stainless steel wire and plate

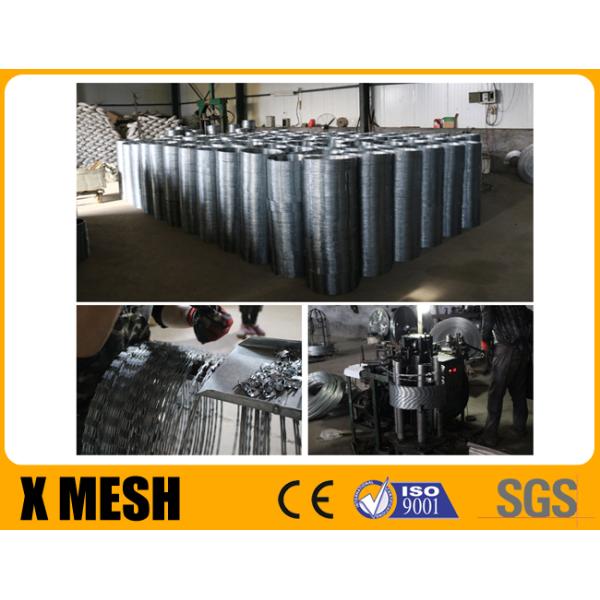

Process: galvanized steel plate or stainless steel plate punched into certain forms then attached to the steel wire in sharp angle to form the blades.
Barbed Types
: BTO-10 BTO-18 BTO-22 CBT-60 CBT-65

Name

Concertina Razor Wire

Material

Hot Galvanized Steel

Blade Thickness

0.5mm

Wire Dia.

2.5mm

Blade Length

30mm

Blade Width

21mm

Blade Spacing

54mm

Tensile Strength

800MPa

Application

For Prisons Protection

Packing

Weave bags Packing or Pallet Packing

Concertina Razor Wire Specification:

Main Types of Razor Wire:

Model

Thickness

Wire Dia

Barb Length

Barbed Width


Barb Spacing

BTO-10

0.5 ± 0.05 mm

2.5 ± 0.1mm

10 ± 1mm

13 ± 1mm

26 ± 1mm

BTO-12

0.5 ± 0.05 mm

2.5 ± 0.1mm

12 ± 1mm

15 ± 1mm

26 ± 1mm

BTO-18

0.5 ± 0.05 mm

2.5 ± 0.1mm

18 ± 1mm

15 ± 1mm

34 ± 1mm

BTO-22

0.5 ± 0.05 mm

2.5 ± 0.1mm

22 ± 1mm

15 ± 1mm

34 ± 1mm

BTO-28

0.5 ± 0.05 mm

2.5 ± 0.1mm

28 ± 1mm

15 ± 1mm

53 ± 1mm

BTO-30

0.5 ± 0.05 mm

2.5 ± 0.1mm

30 ± 1mm

21 ± 1mm

54 ± 1mm

CBT-60

0.6 ± 0.05 mm

2.5 ± 0.1mm

60 ± 2mm

32 ± 1mm

102 ± 1mm

CBT-65

0.6 ± 0.05 mm

2.5 ± 0.1mm

65 ± 2mm

21 ± 1mm

102 ± 1mm


We can also design and make the corresponding machines and equipments to manufacture your private customized razor wire types.

Common Specifications of Razor Wire:

Outside Diameter

No. of Loops

The Utmost Effective Length

Type

Notes

450 mm

33

7 - 8 M

CBT - 60.65

Single coil

500 mm

56

12 - 13 M

CBT - 60.65

Single coil

700 mm

56

13 - 14 M

CBT - 60.65

Single coil

960 mm

56

14 - 15 M

CBT - 60.65

Single coil

450 mm

56

8 - 9 M (3 CLIPS)

BTO - 10.12.18.22.28.30

Cross type

500 mm

56

9 - 10 M (3 CLIPS)

BTO - 10.12.18.22.28.30

Cross type

600 mm

56

10 - 11 M (3 CLIPS)

BTO - 10.12.18.22.28.30

Cross type

600 mm

56

8 - 10 M (5 CLIPS)

BTO - 10.12.18.22.28.30

Cross type

700 mm

56

10 - 12 M (5 CLIPS)

BTO - 10.12.18.22.28.30

Cross type

800 mm

56

11 - 13 M (5 CLIPS)

BTO - 10.12.18.22.28.30

Cross type

900 mm

56

12 - 14 M (5 CLIPS)

BTO - 10.12.18.22.28.30

Cross type

960 mm

56

13 - 15 M (5 CLIPS)

BTO - 10.12.18.22.28.30

Cross type

980 mm

56

14 - 16 M (5 CLIPS)

BTO - 10.12.18.22.28.30

Cross type


We can manufacture more specifications of razor wire products according to the actual needs of customers.

Concertina Razor Wire Feature:

  • 1) Sharp edge frightens intruders and thieves.
    2) High stability, rigidity, and tensile strength to prevent cutting or destroying.
    3) Anti-acid and alkali.
    4) Harsh environment resistance.
    5) Corrosion and rust resistance.
    6) Available to combine with other fences for high level security barrier.
    7) Convenient installation and uninstallation.
    8) Easy to maintain.
    9) Durable and long service life.

Razor Wire Application:

  • Military Use: Concertina wire has been widely used by military forces around the world for perimeter security, defensive fortifications, and obstacle emplacements. It is employed to deter enemy incursions, protect military installations, and secure strategic positions.

  • Border Security: Governments and border authorities use concertina wire to fortify border barriers, deter illegal crossings, and enhance border security. It is often deployed along borders, checkpoints, and sensitive areas to prevent unauthorized entry.

  • Prison and Correctional Facilities: Concertina wire is utilized in prisons, correctional facilities, and detention centers to create secure perimeters and prevent escapes. It is installed atop fences, walls, and barriers to discourage inmates from attempting to breach the security perimeter.

  • Industrial and Commercial Security: Concertina wire is employed in industrial sites, warehouses, and commercial facilities to protect valuable assets, equipment, and property from unauthorized access, theft, and vandalism.
